DISCOVERYOPT®

Luneta DISCOVERYOPT ED-ELR GEN II 5-40X56SFIR FFP-MRAD/MOA-Z Diâmetro: 35 mm

Luneta DISCOVERYOPT ED-ELR GEN II 5-40X56SFIR FFP-MRAD/MOA-Z Diâmetro: 35 mm

// TAGS
ED FFP HPVO Long Range MOA MRAD Precision PRS Range
R$ 2.687,38 BRL
R$ 2.687,38 BRL
Save R$ -2.687,38 Esgotado
Tributos incluídos. Frete calculado no checkout.
escopo
Anéis
// POLICY
Product Guarantee & Shipping Policy

🚀 Time: 10-15 business days for global destinations.

We have facilities in the USA, UK, EU, and China. Your order is dispatched from the facility nearest to you.

Lifetime Warranty: XED, ED, HD, and LHD series products.

3-Year Warranty: HT, HS, WG, MS series and Thermal devices.

Return or exchange within 30 days of delivery if it meets our return criteria.
Ver informações completas
// TECHNICAL SPECIFICATIONS

ED-ELR GEN II 5-40X56

Model Name ED-ELR GEN II 5-40X56
Magnification 5-40X
Focal Plane FFP(First)
OBJECTIVE 56 mm
Tube Diameter 35 mm
Iluminated Vermelho, 6 configurações de brilho
Length 16,7 polegadas (423 mm)
Weight 45,1 oz (1279 g)
Click Value 0,1 MRAD | 0,25 MOA
Turrets and Functions PARADA ZERO
Elevation Adj. Range 25 MRAD | 86 MOA
Windage Adj. Range 18 MRAD | 62 MOA
FOV 23,6 pés (7,2 m) -2,9 pés (0,9 m)/100 jardas
Exit Pupil 9,0-1,4 mm
Eye Relief 3,6 pol. (9,1 cm) - 3,5 pol. (8,9 cm)
Parallax 25-∞ jardas
Recoil Rating .50 BMG
Fog Proof Purga de nitrogênio
Waterproof IP67
Battery CR2032
// RETICLE SIMULATOR
Visual Field Preview
Drag the slider to experience how the reticle changes with magnification.
Magnification
5-40X
FFP(First)
ELEVATION ADJ. RANGE
25 MRAD | 86 MOA
MRAD Reticle
FFP · MRAD
--×
-- × MAG
--× — --×
FFP · Reticle
Field of View
--°
Exit Pupil
--mm
Twilight Factor
--
FFP Front Focal Plane: Reticle scales with target — subtensions remain accurate at all magnifications.
Objective
56 mm
25-∞ jardas
WINDAGE ADJ. RANGE
18 MRAD | 62 MOA
// MOUNTING ASSISTANT
Ring Height Calculator
Select Firearm Platform and Objective Diameter · The System Automatically Calculates Clearance and Recommends the Optimal Mount Height
// 01 · SELECT RIFLE PLATFORM
// 02 · SELECT OBJECTIVE DIAMETER
// 03 · CLEARANCE RESULT
Scope Center → Bore Axis (estimated)
-- "
Select platform and objective
--
// 04 · RING RECOMMENDATIONS
// INSTALLATION NOTES
01 Use a torque wrench. Recommended ring screw torque is 15–18 in-lbs to prevent tube damage.
02 Before zeroing, ensure all screws are tightened in a cross pattern for even clamping force.
03 35mm tube requires 35mm rings. Do not mix with 30mm ring models.
MOUNT CALC ONLINE · ED-ELR GEN II 5-40X56 TUBE: 35mm · OBJ: 56mm DISCOVERYOPT © 2026

// VIDEO TUTORIALS

Videos

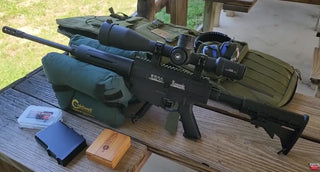

Discoveryopt 5-40x56 Review & Shoot ED ELR 35mm SFIR FFP

In this video, I review the Discovery Optics 5-40x56 scope with a 35mm SFIR FFP reticle, testing its performance on long-range shots. I'll focus on its clarity, precision, and overall effectiveness at extended distances.
Discoveryopt 5-40x56 Review & Shoot ED ELR 35mm SFIR FFP
01

Discoveryopt 5-40x56 Review & Shoot ED ELR 35mm SFIR FFP

In this video, I review the Discovery Optics 5-40x56 scope with a 35mm SFIR FFP reticle, testing its performance on long-range shots. I'll focus on its clarity, precision, and overall effectiveness at extended distances.

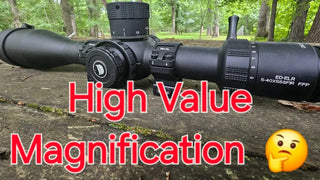

DISCOVERYOPT ED-ELR 5-40X56SFIR FFP: How does it compare to other budget optics?
02

DISCOVERYOPT ED-ELR 5-40X56SFIR FFP: How does it compare to other budget optics?

A scope packed with a ton of features that seems to be well built. Falling a little short in one area but definitely has the ability to get the job done depending on its intended use... Do you think this might be something you'd pickup?

// WHAT'S IN THE BOX

PACKAGE CONTENTS

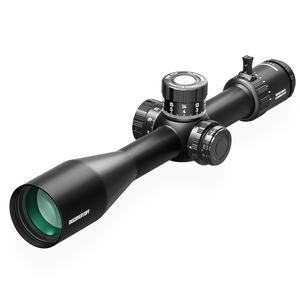

  • Escopo

    Escopo

    ×1

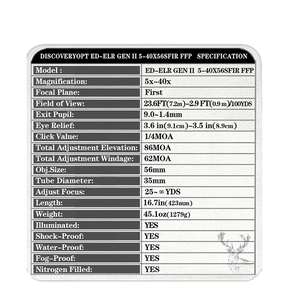

  • Ficha técnica

    Ficha técnica

    ×1

  • Manual do Usuário

    Manual do Usuário

    ×1

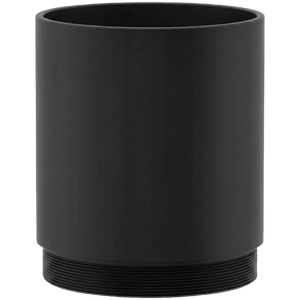

  • Para-sol de alcance

    Para-sol de alcance

    ×1

  • Pano de limpeza de lentes

    Pano de limpeza de lentes

    ×1

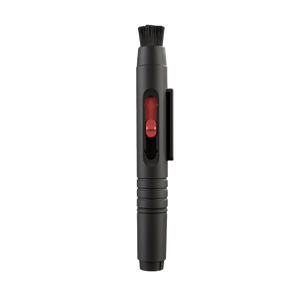

  • Caneta de limpeza

    Caneta de limpeza

    ×1

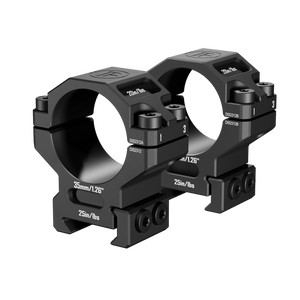

  • Anéis de mira

    Anéis de mira

    ×1

  • Chave hexagonal

    Chave hexagonal

    ×1

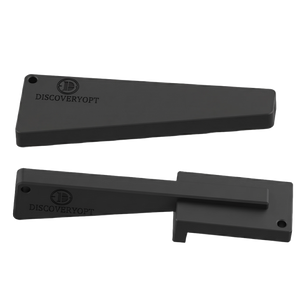

  • Kit de nivelamento

    Kit de nivelamento

    ×1

  • Cartão de Garantia e Cartão de Controle de Qualidade

    Cartão de Garantia e Cartão de Controle de Qualidade

    ×1

  • Tampa da lente

    Tampa da lente

    ×1
